DC-to-DC Dual Battery Charger 60A

If you’re planning an off-grid camping, a DC-DC charger is essential for a dual battery setup. This device is designed to do a full charge cycle with the ability to choose either Lead Acid, AGM, Gel, calcium, LiFePO4 batteries and apply the suitable charging profile to prolong their lifespan. It also incorporates a Re-selection Ready mechanism that allows you to re-select the battery during charging by long pressing “POWER”.

This DC-DC charger is also a multi-input charger that is able to charge from either an alternator to get the best possible rate of flow into your secondary battery and keep it up on the drive or via solar power with the built-in MPPT controller for faster charging and reducing load on your engine!

It comes with all protections integrated to keep the battery safe.

Features:

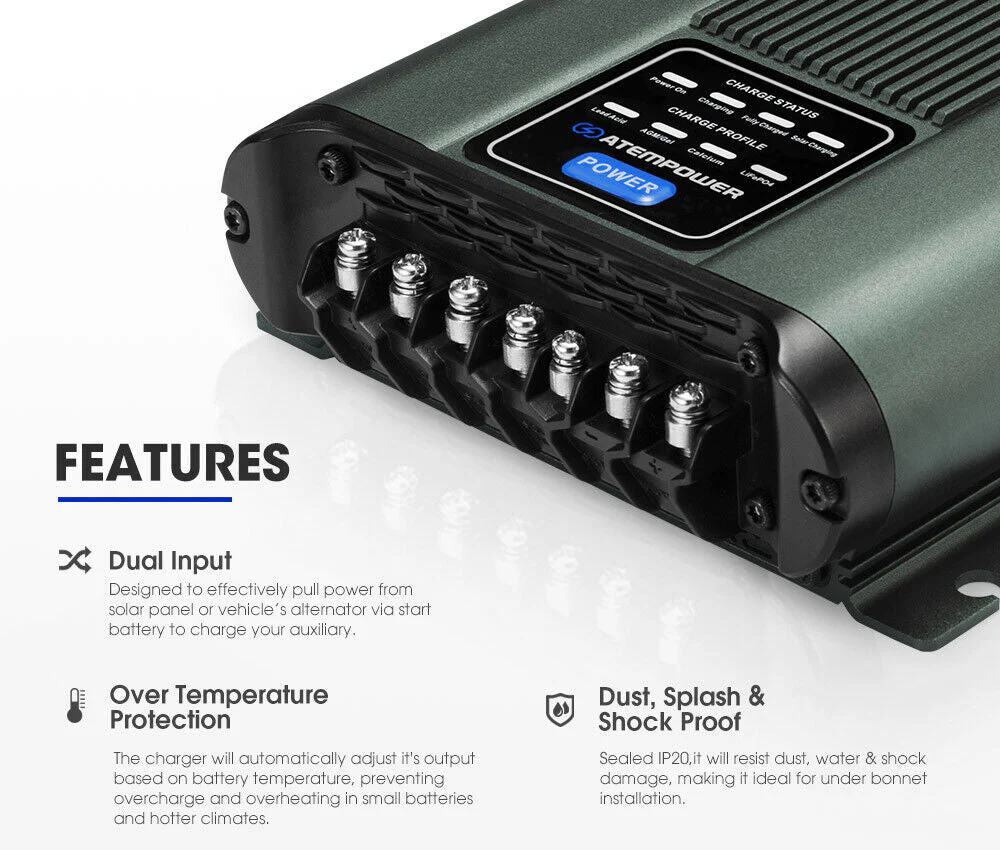

• Dual Input: This Charger is designed to effectively pull power from a solar panel or vehicle’s alternator to charge your auxiliary battery.

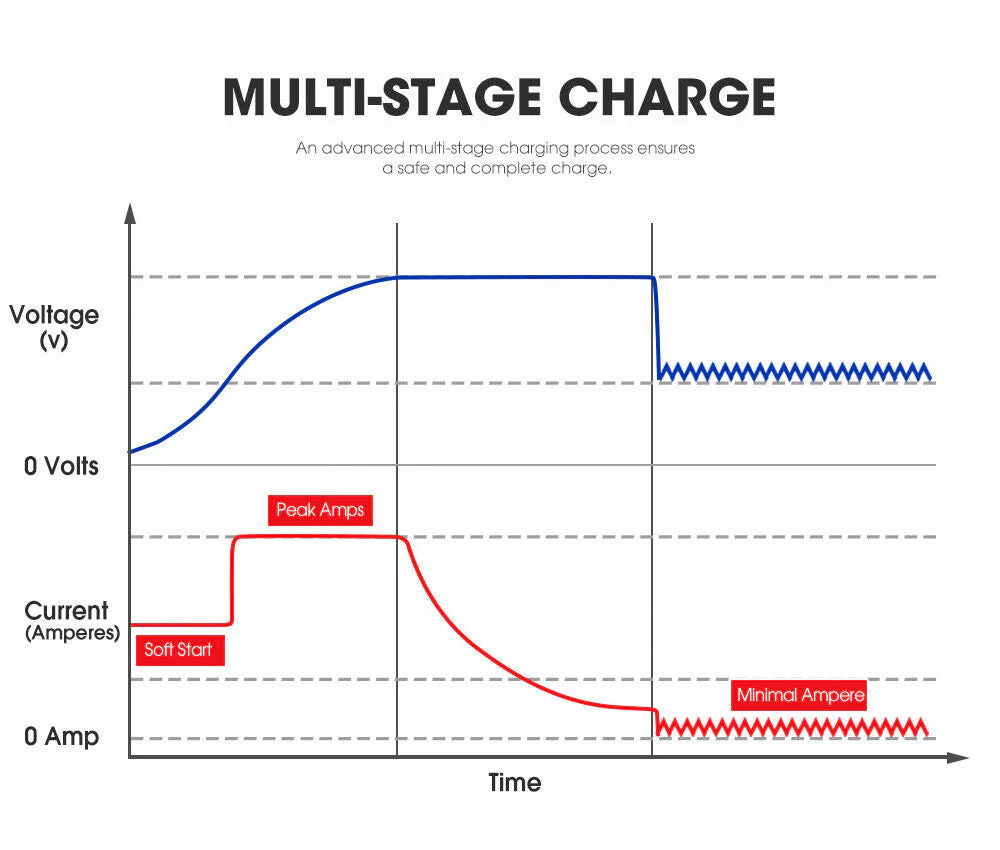

• Multi-Stage Charging: This charger integrates standby, pre-charge, constant current charging, constant voltage charging, full charge and re-charge.
• Multi Battery Selection: This DC-to-DC charger by ATEM POWER is compatible with Lead Acid, AGM, Gel, calcium, and LiFePO4 batteries.

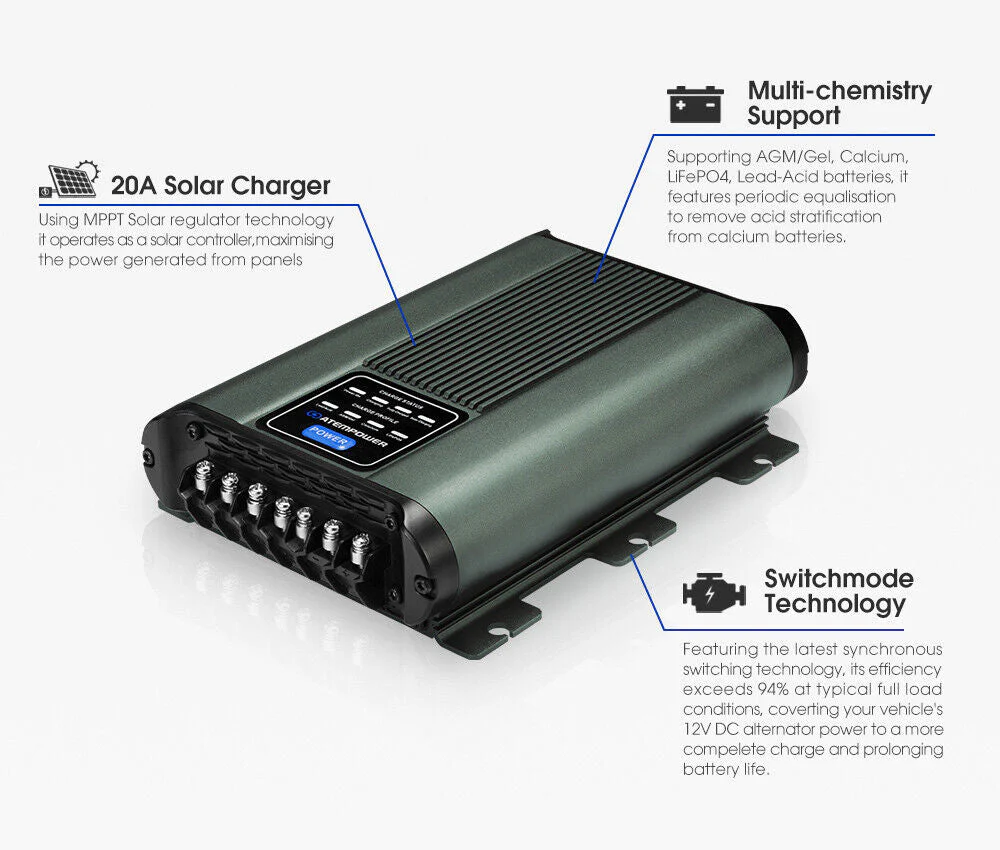

• Built-In MPPT Regulator: The regulator is designed to harvest up more energy from the solar panel.

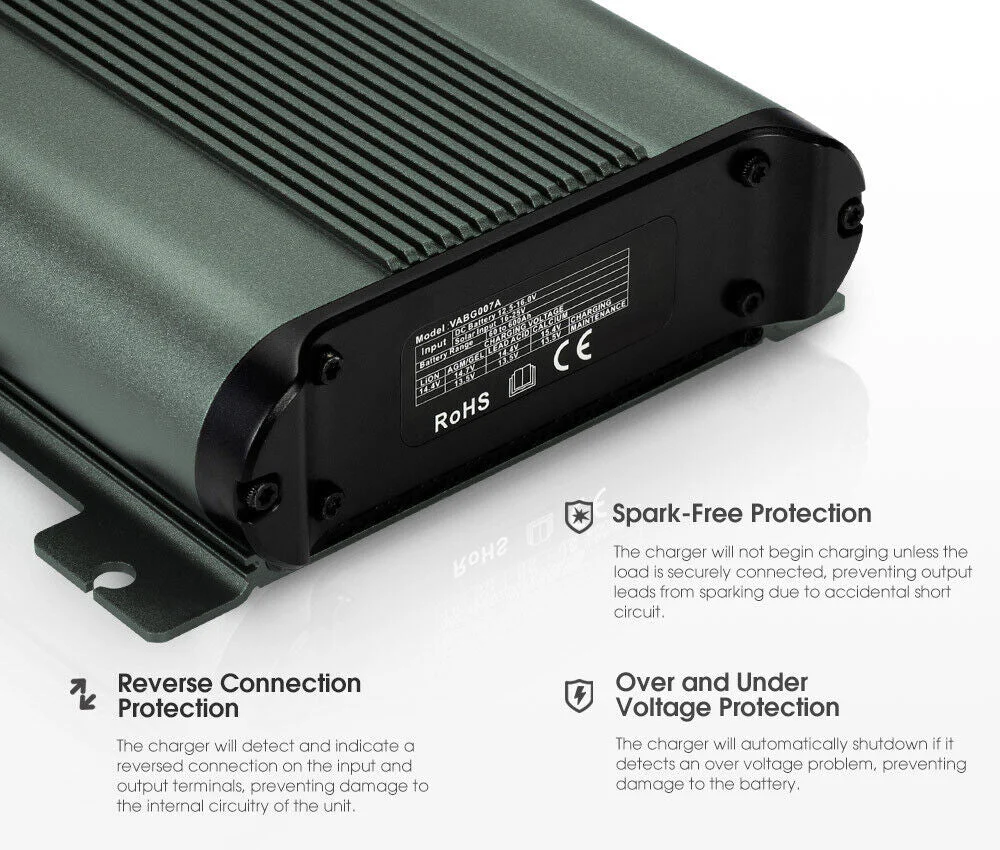

• Multiple Protection: It integrates over-charge, short circuit, over-temperature, thermal load, solar input overload, and input/output reverse polarity protection.
• Internal Temperature Monitoring: This mechanism can effectively protect the circuit board, thus prolonging the lifespan of the charger.
• Sturdy Construction: Sturdy aluminum housing is built to resist harsh conditions and quality wires are built for long-lasting durability.
• Upgraded Charging Algorithm: This algorithm is designed to select the optimum charge mode and revive your discharged battery.

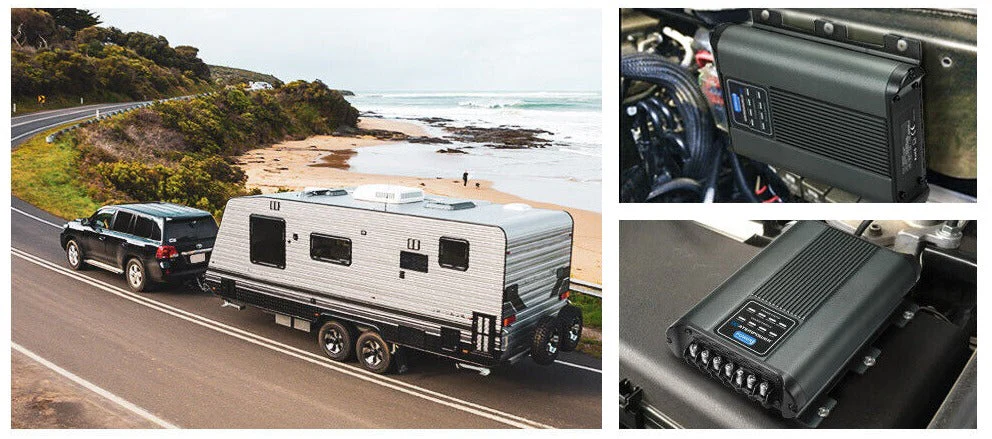

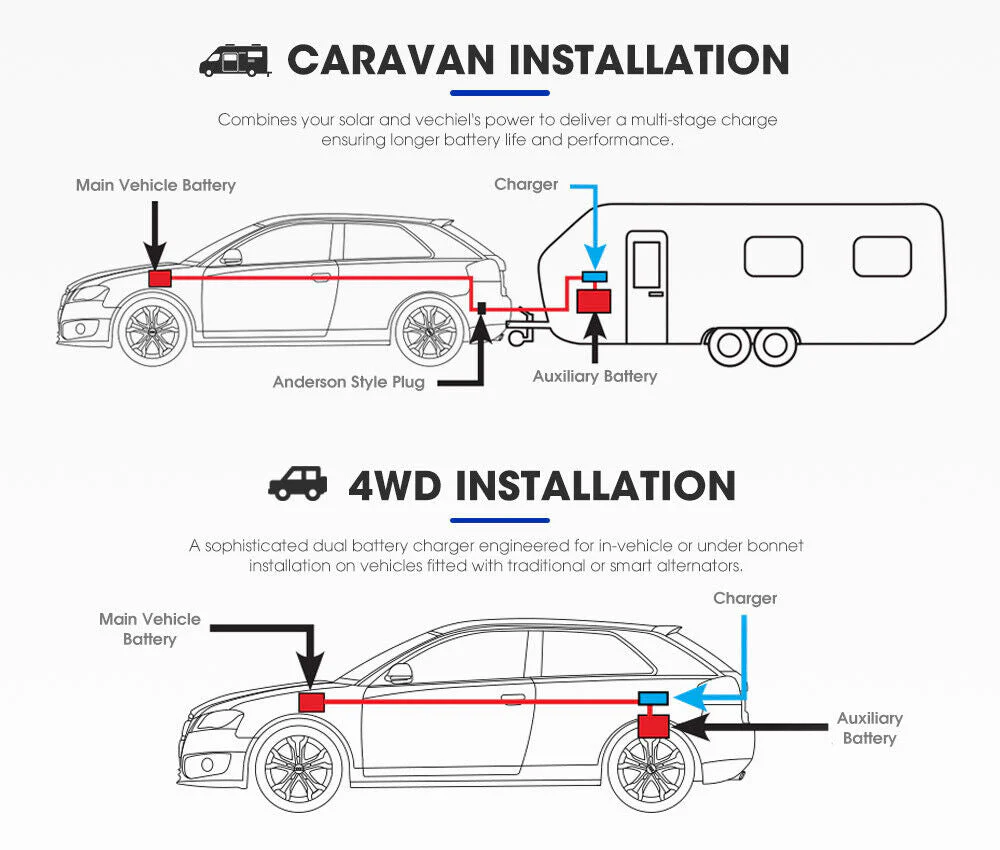

• Smart Alternator Compatible: The ACC wire can be wired to the ignition to adjust voltage cut-off, which is suitable for modern vehicles, trailers and caravans.

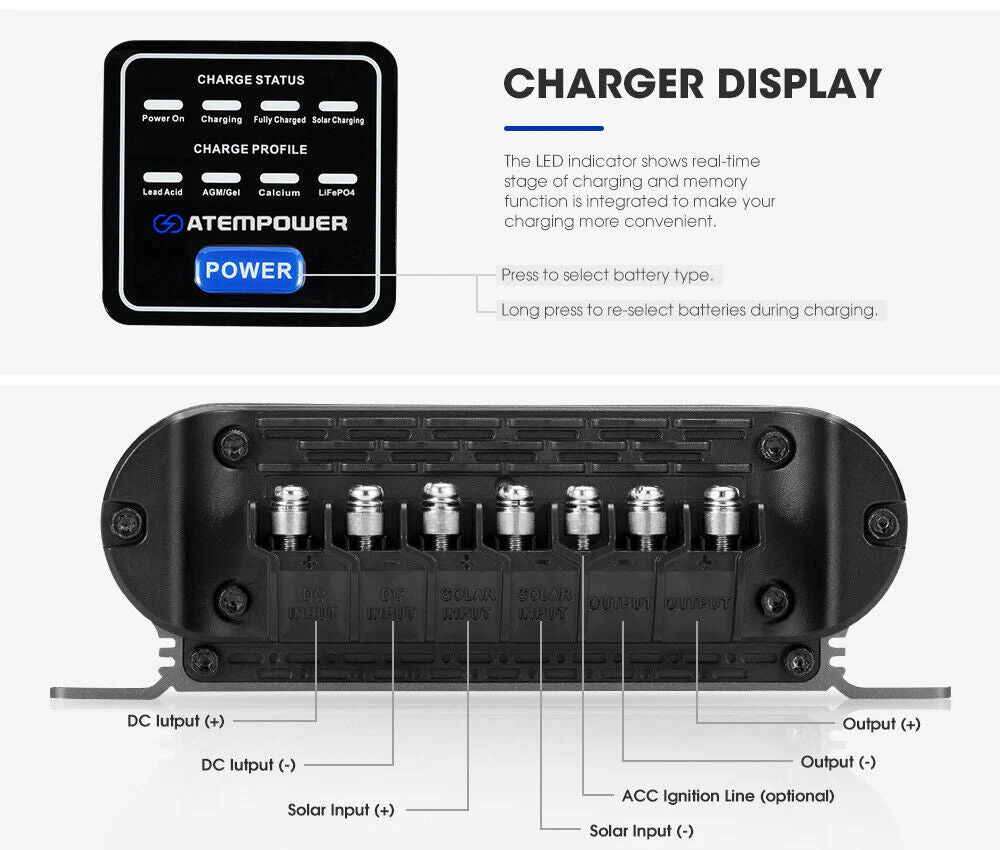

• User-Friendly Design: The LED indicator shows the real-time stage of charging and the memory function is integrated to make your charging more convenient.

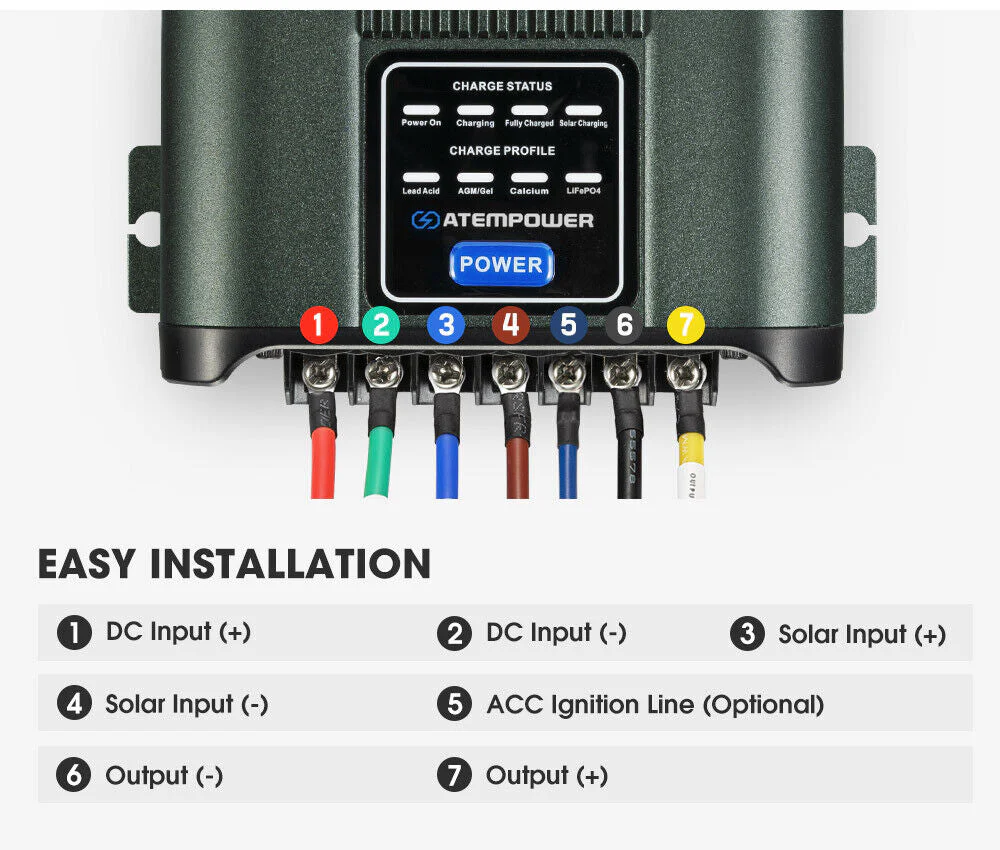

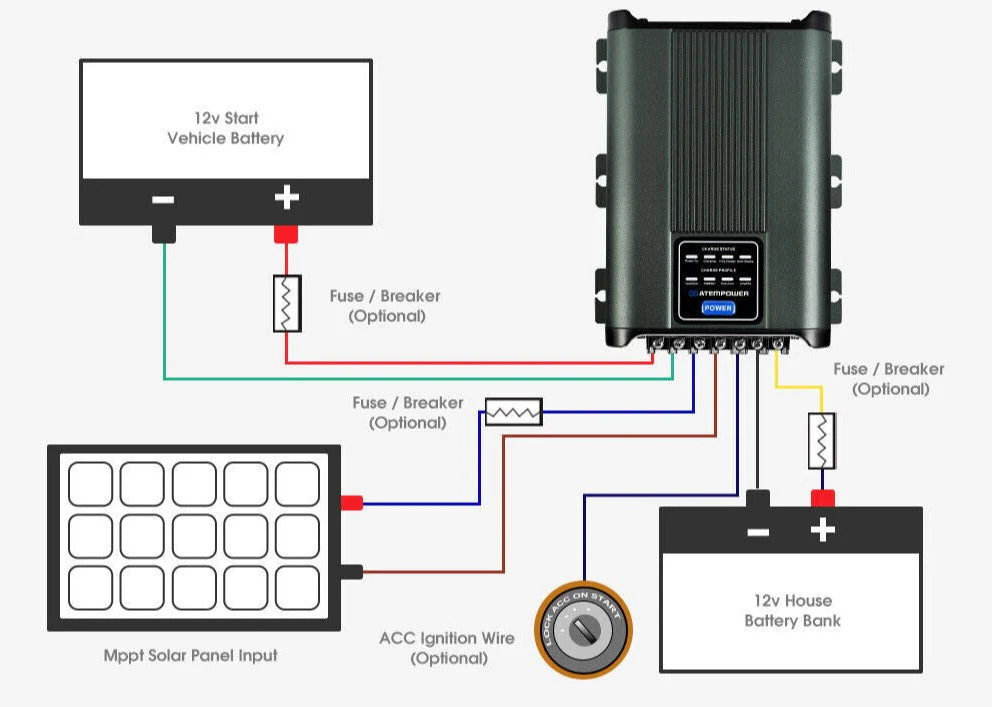

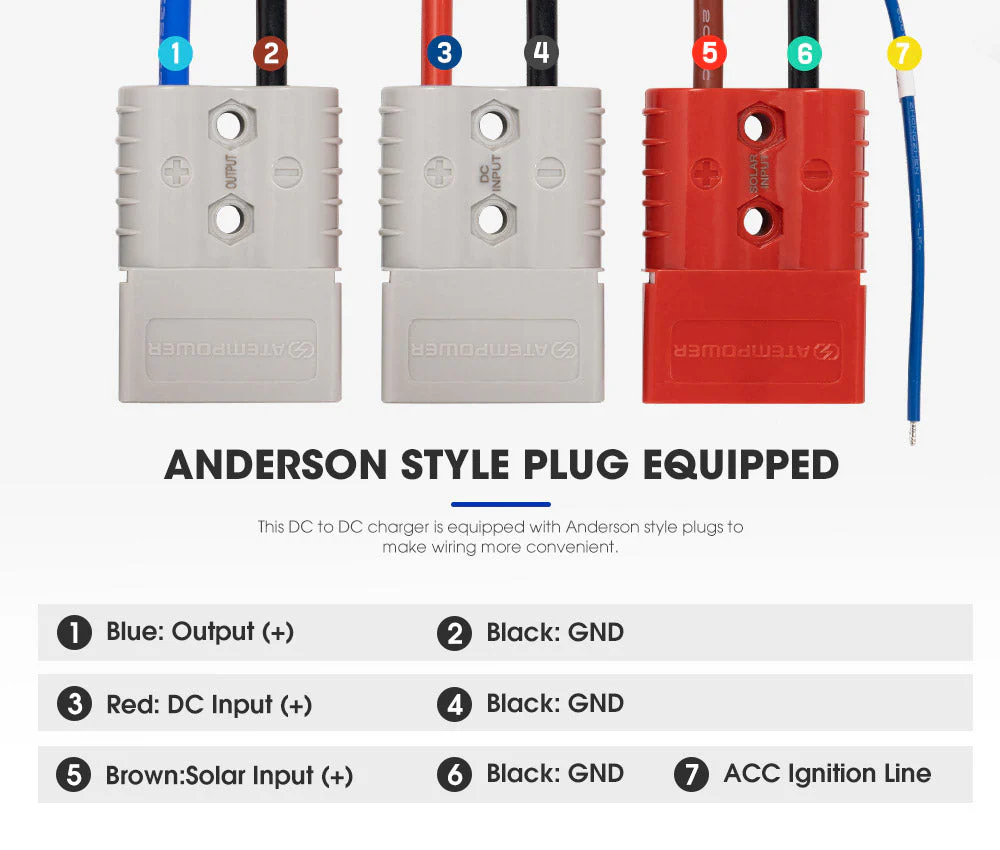

• Please note: always refer to the wiring diagram in this listing for the latest wiring setup of the product as the user manual might be for the previous version.

Specifications:

• Battery Input Voltage Range: 13~16V
• MIN. Solar Input Voltage: 16V
• MAX. Solar Input Current: 100A
• MAX. Solar Input Voltage: 25V
• MAX. Output Current: 60A
• DC Input Voltage: 13~16V
• Rated Charging Current: 60A MAX (IN/OUT)
• Charging Voltage Range: 2.5~15.4V
• Operational Temperature (Ambient): -10℃~45℃
• Humidity: 0%~90%
• Soft Start: YES
• Soft Charge Current: 20A
• Bulk Charge Voltage: 14.7V(AGM/GEL) 14.4V(LEAD ACID) 15.4V(Calcium) 14.4V(LiFePO4)

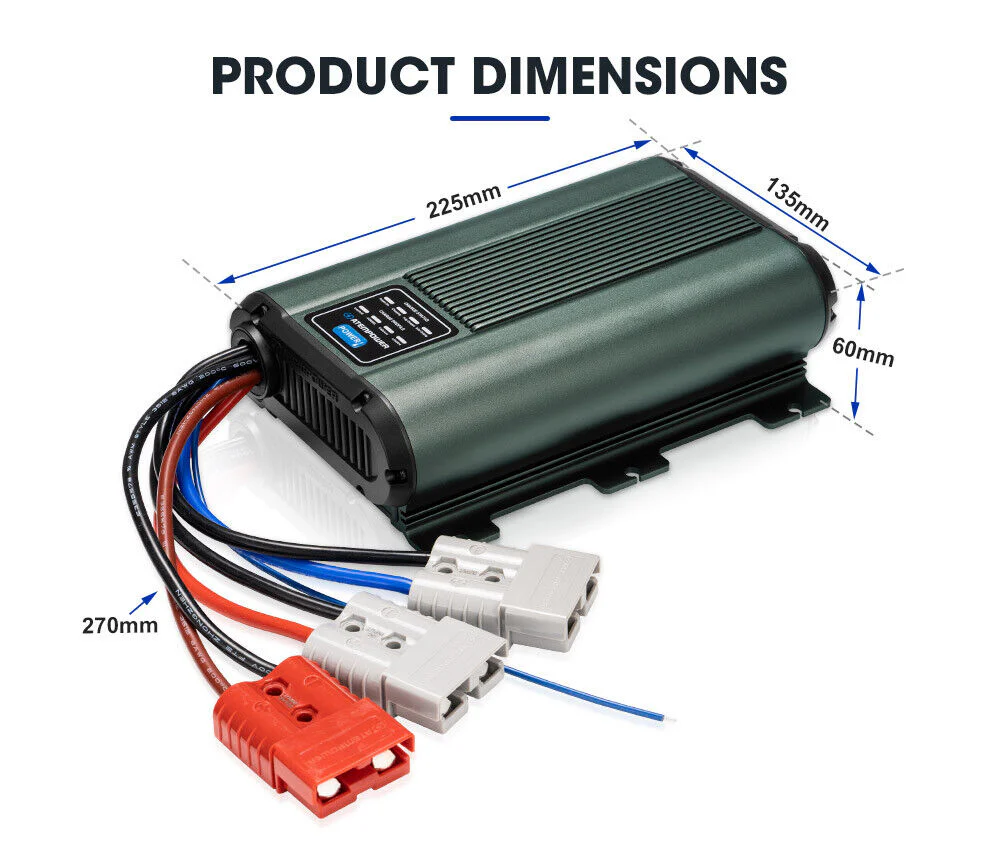

• Package Size: 33x30.5x7.5cm
• Gross Weight: 2.44kg

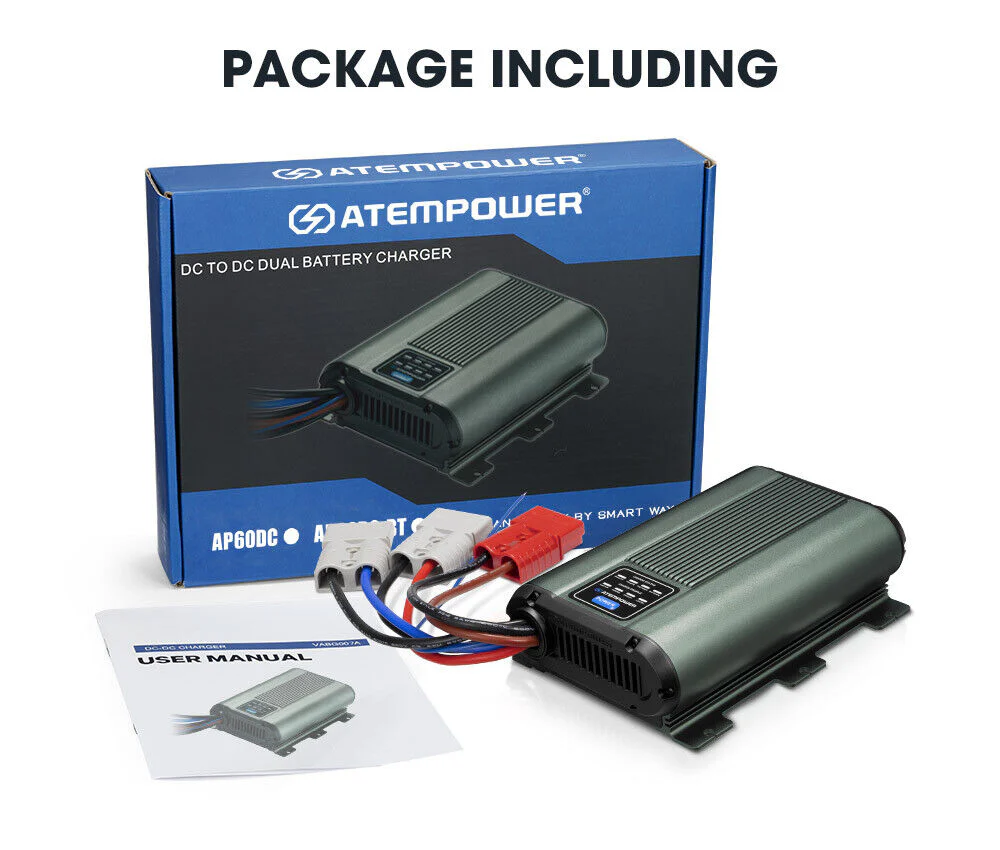

Package Includes:

• 1 x 60A ATEM POWER DC-DC Charger
• 1 x Manual

Warranty:

• 1 Year Warranty
